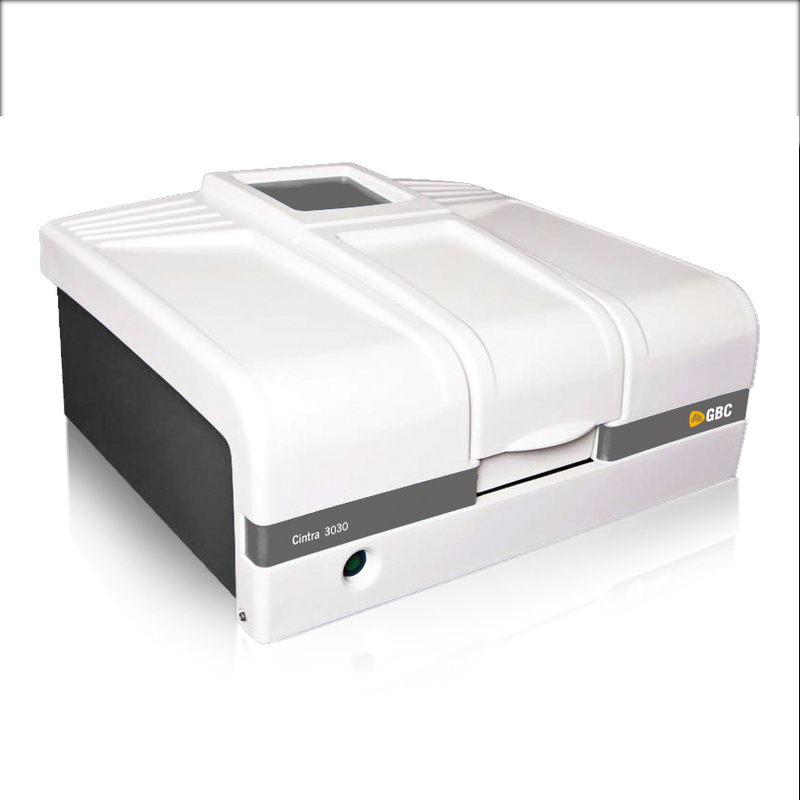

Cintra 1010/2020/3030/4040 UV Spectrometer

Dual-beam optical system, featuring long-term stability, ensures the accuracy of measurement results. A good optical design guarantees reliable and stable measurement results, even for sample volumes in the μL range. Tests required by IQ/OQ, multiple national pharmacopoeias, and other performance specifications can all be completed through the automatic system performance verification module of Cintral software. Multiple applications, such as routine testing, quantitative analysis, system performance verification, color analysis, kinetics/time studies, and DNA melting analysis, can be carried out via software modules.

Request Quote

Cintra 1010/2020/3030/4040 UV Spectrometer

Cintra 1010: A practical model that meets the requirements of general applications. It is an economical double-beam instrument with low levels of stray light and noise.

Cintra 2020: An extended model that combines flexibility and functionality. It has a wide wavelength range of 190nm - 1200nm, low levels of stray light and low noise indicators.

Cintra 3030: A high-end model suitable for specific and research applications. It is a research-grade model with high sensitivity in the ultraviolet region. This model has a variable slit width in the range of 0.2nm - 5nm, which can achieve good sensitivity and resolution, and has low levels of stray light and low noise indicators.

Cintra 4040: Suitable for high-end applications, it is a double-beam, double-monochromator model with high resolution and sensitivity. By using an adjustable slit width in the range of 0.1nm - 2.0nm and a double-Littrow monochromator in a Czerny - Turner layout, it can achieve a low level of stray light and a photometric linearity better than 1.2% at 5Abs, thus achieving high resolution. With a wide dynamic range and excellent optical indicators, Cintra 4040 is a UV instrument that performs well in high-end applications at a comparable price.


Key Features

Look More

Cintra 1010/2020/3030/4040 UV Spectrometer

Cintra 1010: A practical model that meets the requirements of general applications. It is an economical double-beam instrument with low levels of stray light and noise.

Cintra 2020: An extended model that combines flexibility and functionality. It has a wide wavelength range of 190nm - 1200nm, low levels of stray light and low noise indicators.

Cintra 3030: A high-end model suitable for specific and research applications. It is a research-grade model with high sensitivity in the ultraviolet region. This model has a variable slit width in the range of 0.2nm - 5nm, which can achieve good sensitivity and resolution, and has low levels of stray light and low noise indicators.

Cintra 4040: Suitable for high-end applications, it is a double-beam, double-monochromator model with high resolution and sensitivity. By using an adjustable slit width in the range of 0.1nm - 2.0nm and a double-Littrow monochromator in a Czerny - Turner layout, it can achieve a low level of stray light and a photometric linearity better than 1.2% at 5Abs, thus achieving high resolution. With a wide dynamic range and excellent optical indicators, Cintra 4040 is a UV instrument that performs well in high-end applications at a comparable price.
