For the analysis of detection limits at the ppb level, the fully automatic high-performance graphite furnace, System 5000, provides automated operation, high precision and excellent repeatability. The System 5000 graphite furnace is a complete graphite furnace system, including the PAL autosampler, power supply unit and working head required for fast and accurate analysis. The entire system is controlled by the SavantAA software.

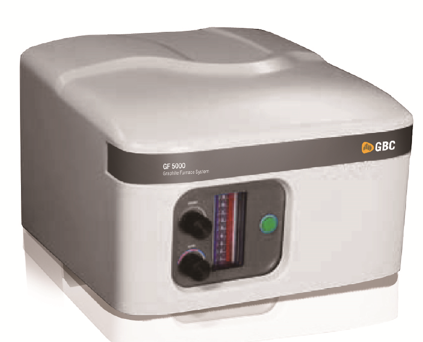

System5000 Graphite Furnace

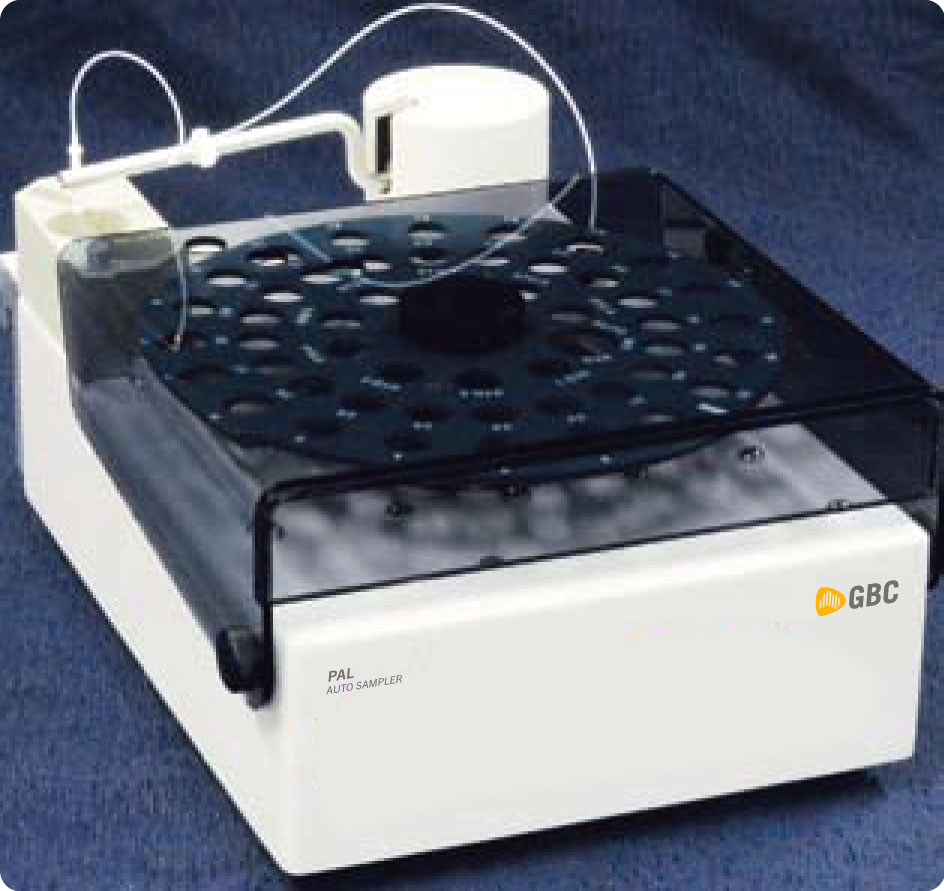

PAL Graphite Furnace Autosampler
Features:
Temperature programming up to 3000°C, capable of analyzing complex samples.
High - performance graphite tube with a lifting platform concentrates the sample in a smaller area to reduce the temperature gradient.
Programmable protective gas selection allows different gases to be used for different ashing techniques in the same analytical method.
Automatic addition of chemical modifiers. No more than two modifiers can be used, and most manual pre - treatments can be omitted.
High - temperature injection can speed up the analysis process, thereby increasing the analytical throughput of the instrument.
Multiple injection function enables sample pre - concentration. For low - concentration analysis, the PAL autosampler pre - stores the sample. Before the sample enters the next injection cycle, the graphite furnace performs up to 50 drying - ashing processes on the sample, eliminating the messy and time - consuming sample extraction process or other sample pre - treatment techniques.
The PAL autosampler can provide calibration curves for 10 standard samples and automatically analyze 40 samples. Sample volumes: 2 mL (for standard samples and samples), 5 mL (for automatic mixing of standard samples), 10 mL (for blank solutions and chemical modifiers).
System5000 Graphite Furnace
PAL Graphite Furnace Autosampler
Features:
Temperature programming up to 3000°C, capable of analyzing complex samples.
High - performance graphite tube with a lifting platform concentrates the sample in a smaller area to reduce the temperature gradient.
Programmable protective gas selection allows different gases to be used for different ashing techniques in the same analytical method.
Automatic addition of chemical modifiers. No more than two modifiers can be used, and most manual pre - treatments can be omitted.
High - temperature injection can speed up the analysis process, thereby increasing the analytical throughput of the instrument.
Multiple injection function enables sample pre - concentration. For low - concentration analysis, the PAL autosampler pre - stores the sample. Before the sample enters the next injection cycle, the graphite furnace performs up to 50 drying - ashing processes on the sample, eliminating the messy and time - consuming sample extraction process or other sample pre - treatment techniques.
The PAL autosampler can provide calibration curves for 10 standard samples and automatically analyze 40 samples. Sample volumes: 2 mL (for standard samples and samples), 5 mL (for automatic mixing of standard samples), 10 mL (for blank solutions and chemical modifiers).
